LUTRON CASETA PRODUCT GUIDE
Caseta by Lutron offers a whole host of lighting control solutions for a variety of smart home setups. The line features a sleek appearance, simplified installation, and streamlined control in a wide selection of colours.
Caseta has a PRO model line that provides advanced specifications, allowing for more versatility in a wider range of systems, making them ideal for professional installations.
When building the ideal Caseta lighting control system, there are many different devices, components, and kits to choose from. This guide will walk through each of the major products that we offer.
Smart Bridge

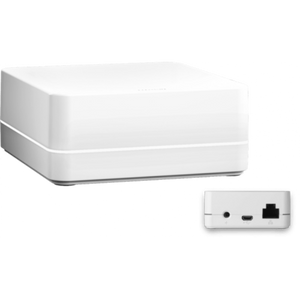

Smart bridge - L-BDG2-WH-C
The Lutron Caseta Smart Bridge enhances the Caséta wireless system by integrating with smart devices and systems such as iOS or Android devices, Google Home, Amazon Alexa, and Apple Siri, allowing customers to control the lighting around their home with their preferred method.
The Smart Bridge allows customers to automate their lighting, set up schedules, use Smart Away, or control their lights via voice control.

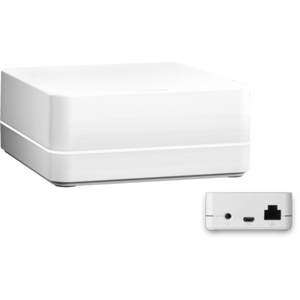

Smart Bridge Pro - L-BDGPRO2-WH-C
Like the original Caseta Smart bridge, the Smart Bridge Pro works with various systems and devices and allows customers to automate their home lighting system.
The Pro design supports additional third-party integrations that are not supported by the regular Smart Bridge, such as third-party hubs systems beyond the built-in support of the standard Smart Hub.
Smart Dimmers

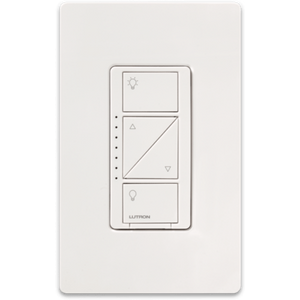

Wireless In-Wall Dimmer - PD-6WCL-WH-C
This classy dimmer easily wires in place of a standard to provide intuitive dimming control with buttons for on, off, bright, dim, and built-in LED indicators. This should be used when there is no neutral wire connection available and when 3 way wiring is not needed. This dimmer switch supports incandescent or dimmable LED bulbs for up to 150W LED or 600W incandescent.

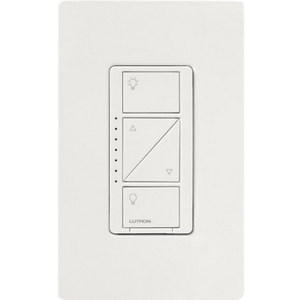

In-wall dimmer Pro - PD-10NXD-WH-C
The Caseta PRO In-Wall Dimmer offers the same features as the regular In-Wall Dimmer. It has an (optional) neutral wire connection but it should be used wherever possible as it allows the dimmer to provide much higher quality dimming. This dimmer also supports wired mechanical 3 way switches. It supports LEDs and CFLs up to 250W, as well as incandescent and halogen bulbs up to 1000W. It also works with magnetic low voltage lighting up to 1000VA.

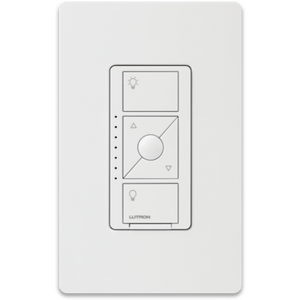

Wireless In-Wall ELV+ Dimmer - PD-5NE-WH-C
The ELV+ dimmer provides streamlined light control with individual buttons for on, off, bright and dim, along with a "favourite" button to save brightness preferences. The dimmer switch wires in place of a standard switch and has a built-in LED indicator.
It supports electronic low voltage lighting like under cabinet lights or other dimmable low voltage fixtures. It works with LEDs, ELV, MLV, incandescent and halogen dimmable bulbs.
Smart Switches

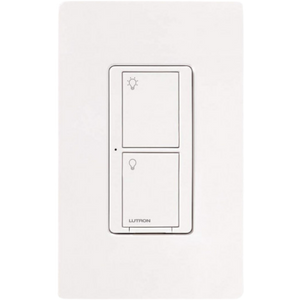

PRO 5A In-Wall Dual Voltage Switch - PD-5WS-DV-WH
This Pro switch provides local on/off dimming control of non-dimming lights or fans. It doesn't need a neutral wire and includes LUT-MC for switching LED, CFL, and ELV loads and supports both 120V and 277V applications.

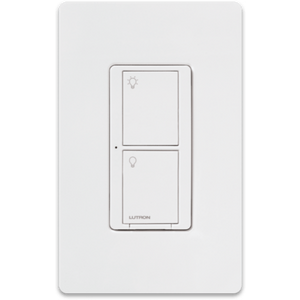

Wireless 6A In-Wall Switch - PD-6ANS-WH
This simple yet sleek switch provides local on/off dimming control of non-dimming lights or fans. It supports incandescent/ halogen up to 720W, LED up to 6A, MLV up to 575W/720VA, fluorescent up to 6A, and general-purpose fans up to 3.6A.

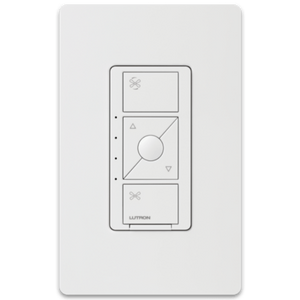

Wireless In-Wall Smart Fan Speed Control Switch - PD-FSQN-WH
This control switch features local on, off and speed control with built-in LED indicators. It is easy to install and wires in place of a standard switch but requires a natural connection. It supports funs up to 1.5A.

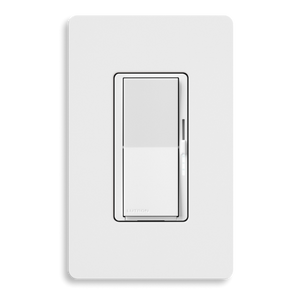

Lutron Caseta Diva Smart Dimmer Switch - DVRF-6L-WH
The Diva Smart Dimmer Switch is the latest dimmer model from Lutron's Caseta line. It features LED+ technology for superior precise LED dimming, along with a soft glow light bar. It can be used wired or in a wireless 3-way/multi-location situation for control from 2 or more places.
This device is compatible with the original Caseta line of products and the Lutron Smart Hub, formerly known as the Smart Bridge.

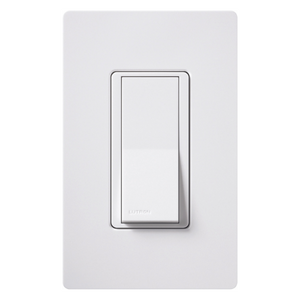

Lutron Caseta Claro Smart Switch - DVRF-5NS-WH
This sleek Caseta Claro Smart Switch from Lutron can replace existing light switches to turn wired lights or ceiling fans on and off. It is designed to work with the Diva Smart Dimmer and can work wired or in a wireless 3-way/multi-location setup for control from 2 or more places. It works with original Caseta line products and the Lutron Smart Hub.

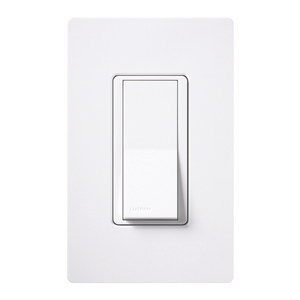

Lutron Caseta Claro Accessory Switch - DVRF-AS-WH
The Caseta Claro Accessory Switch from Lutron is designed to work with the Diva Smart Dimmer and other Claro Smart devices. It has a matching paddle and feel to Diva and Claro and allows lights to fade on or off. It can be set to turn on a preset favourite or double-tapped for full brightness.
Pico Remotes

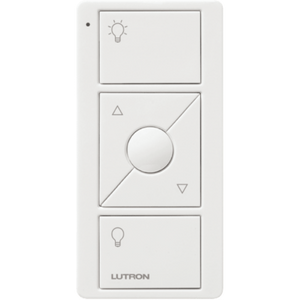

The Caseta Pico Remote with LED - PJ2-3BRL-GWH-L01
The Pico wireless remote can control Caseta devices throughout a home. Pico remotes are available in around 200 different versions for scene lighting controls, remote control, shades, fans or sonos control. Pico remotes have a battery life of up to 10 years. Pico remotes can be used on their own, or by adding accessories can be surface mounted, wall box mounted, mounted to a pedestal for table top, or visor clip mounted in a vehicle.
Motion Sensors

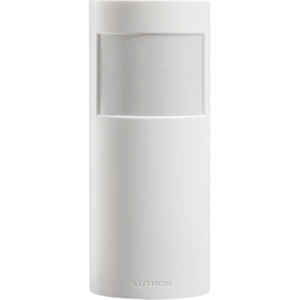

Wireless Smart Vacancy Sensor - PD-VSENS-WH
This Vacancy Sensor can detect motion in the room, automatically turn Caséta devices on when your customers enter the room and turn them off when it doesn't sense any activity. It doesn't require any wiring, as it uses a battery with a 10-year life expectancy. Please note that this sensor is not pet immune.
Wireless Smart Occupancy Sensor - PD-OSENS-WH
This sensor can automatically turn on Caseta devices when it detects motion and has a 180-degree field of view. It uses a 10-year battery, so no wiring is required, allowing for better placement. Please note that this is not pet immune, so pets will be able to activate it.
Wireless Repeater

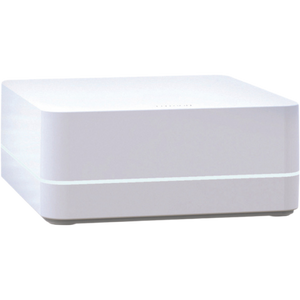

The Caseta PD-REP-WH Wireless Repeater
The Caseta PD-REP-WH Wireless Repeater can extend the range of Caseta wireless systems up to 60 feet. This device allows the smart bridge to be placed in a non-central location and work better in large or uniquely shaped homes. It simply plugs into the wall with no additional wiring.
Smart Plugs

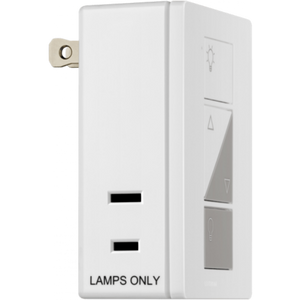

Plug-in Lamp Dimmer - PD-3PCL-WH-C
This plug-in lamp dimmer plugs into a wall outlet and provides local and remote on, off and brightness control of plug-in dimmable lamps. It has two outlets so two lights can be controlled simultaneously. It supports incandescent/halogen up to 300W and dimmable LED / CFL up to 100W total.

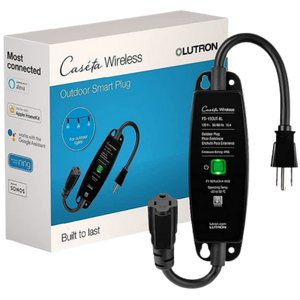

Outdoor Smart Plug - PD-15OUT-BL
The Caseta outdoor smart plug provides wireless and local on-off control of outdoor string lights, holiday lights, garden features, small motors and more by being plugged into an electric outlet.
Case Accessories

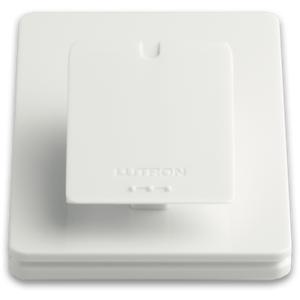

Pico Remote Pedestal - L-PED1-WH
This pedestal is required for tabletop mounting of the Pico remote. It features a non-slip base and an angled surface.

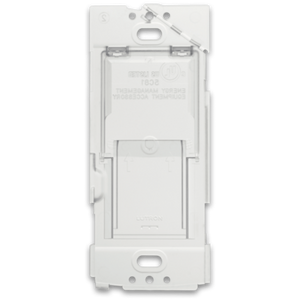

Pico Wallbox Adapter - PICO-WBX-ADAPT
This adapter allows a Pico remote to be mounted on almost any flat surface, including walls, glass, brick etc. Please note that a wall plate is not included.

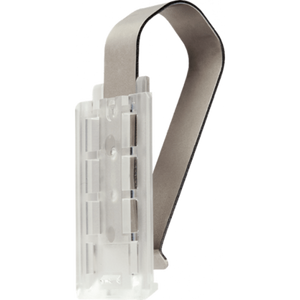

Pico Car Visor Clip - PICO-CAR-CLIP
This visor clip allows users to attach a Pico remote to their vehicle's visor to control Caseta devices from their car.

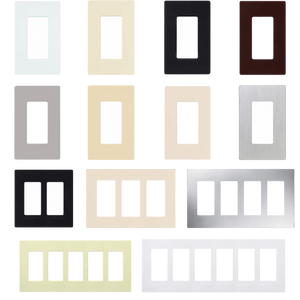

Claro Wallplates
Many of the Caseta switches and dimmers do not include wallplates. Luckily there are a variety of sizes, colours and finishes available. We offer single gang wall plates all the way up to 6 gangs in a wide range of colours to match the aesthetic of any project.
Bundles and Kits
Wireless Starter Kit - P-BDG-PKG1WS-C
Kit includes:
- PD-6ANS Smart Switch
- L-BDGW Smart Bridge
- Single gang Claro trim plate
Switch kits

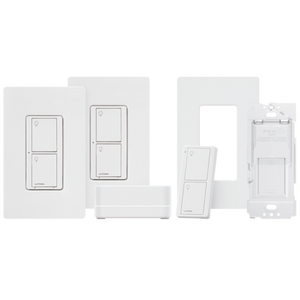

Two Switch Wireless Kit - P-BDG-PKG2WS-WHC
Kit includes:
- 1 Smart bridge
- 2 in-wall smart switches
- 1 Pico wireless remote with a 10-year battery
- 1 Clar wallplate
- 1 Wallplate adapter
- Claro wall trim plate

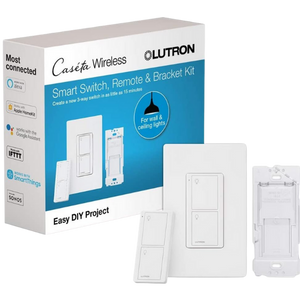

Wireless 3-Way Switch Kit - P-PKG1WS-WH-C
Kit includes:
- 1 x PD-5ANS-WH Smart Dimmer
- 1 x Pico wireless remote with on/off
- 1 x PICO-WBX-ADAPTER wall box adapter
- 1 x Claro wall trim plate
Dimmer kits

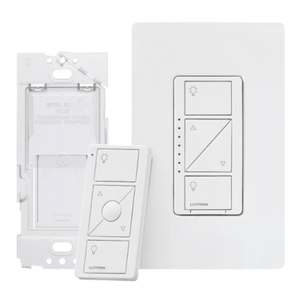

Wireless 3-Way Dimmer Kit - P-DIM-3WAY-WH-C
Kit includes:
- PD-6WCL-WH-C Smart Dimmer
- Pico wireless remote with on/off/bright/dim
- Claro wall trim plate

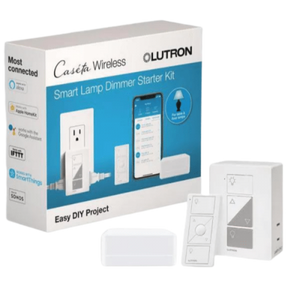

Wireless Plug-in Lamp Dimmer Kit - P-BDG-PKG1P-C
Kit includes:
- 1 Smart Bridge
- 1 plug-in smart dimmer that controls up to 2 lamps
- 1 Pico Smart Remotes with a 10-year typical battery life
- 1 tabletop pedestal for Pico

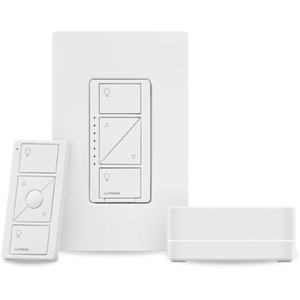

Wireless In-Wall Dimmer Kit - P-BDG-PKG1W-C
Kit includes:
- 1 Smart bridge
- 1 in-wall smart dimmer
- Pico wireless remote with 10-year battery
- Claro wall trim plate

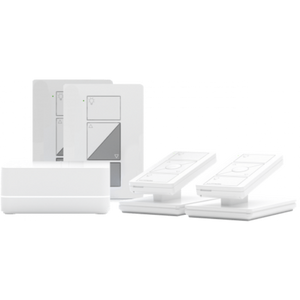

Wireless Plug-in Dimmer Kit - P-BDG-PKG2P-C
Kit includes:
- 1 Smart Bridge
- 2 plug-in smart dimmer that controls up to 4 lamps
- 2 Pico Smart Remotes with a 10-year typical battery life
- 2 tabletop pedestals for Pico

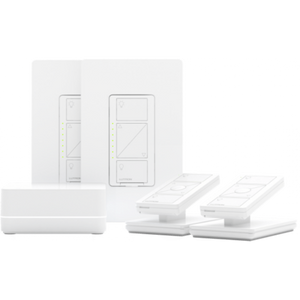

Wireless 2 In-Wall Dimmers Kit - P-BDG-PKG2W-C
Kit includes:
- 1 Smart bridge
- 2 in-wall smart dimmer
- 2 Pico wireless remote with 10-year battery
- 2 tabletop pedestals for Pico
- 2 Claro wall trim plate

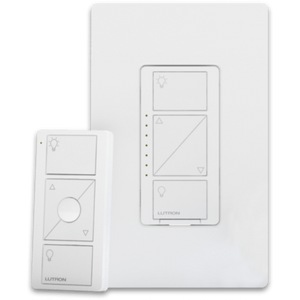

Wireless In-Wall Dimmer and Pico Remote Control Kit - P-PKG1W-WH-C
Kit includes:
- PD-6WCL-WH-C Smart Dimmer
- Pico wireless remote with on/off/bright/dim
- Claro wall trim plate

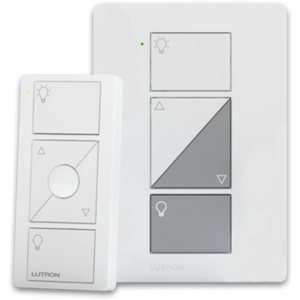

Wireless Plug-in Dimmer and Remote Kit - P-PKG1P-WH-C
Kit includes:
- P-3PCL-WH-C plug-in smart dimmer
- Pico wireless remote

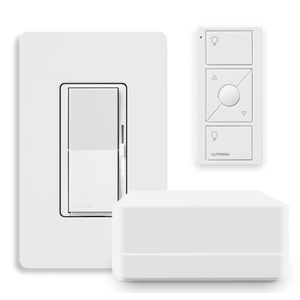

Diva Smart Dimmer Starter Kit with Smart Hub and Pico Remote - DVRF-BDG-1D-C
This Caseta Diva Smart Dimmer Starter kit from Lutron provides everything users need to establish or build on their Caseta Smart home lighting system. Caseta products use Clear Connect RF Technology to enable wireless communication with Pico remotes, branded motion sensors and other Lutron devices such as the smart hub. The system is designed to be easy to use and install while providing a sleek aesthetic and user-friendly functionality.
Kit includes:
- 1 Caseta Diva Smart Dimmer
- 1 Claro wallplate
- 1 Smart Hub
- 1 Pico Smart Remote
Pro bundles

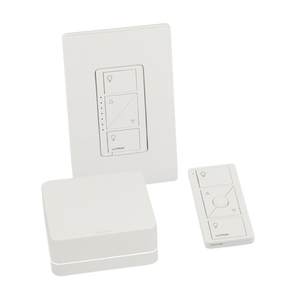

Wireless PRO In-Wall Dimmer Kit - P-BDGPRO-PKG1W-C
Kit includes:
- 1 Smart Bridge Pro
- 1 in-wall smart dimmer
- Pico wireless remote with a 10-year battery
- Claro wall trim plate

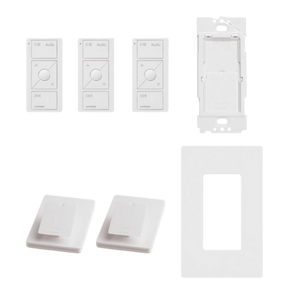

Wireless PRO Audio Kit - P-BDGPRO-PKG3AWC
Kit includes:
- 1 Smart Bridge Pro
- 3 Pico Wireless 3-button with raise/lower audio controls
- 2 single mount pedestals
- 1 wall box adaptor
