Guide to Fellowes Array Air Purification

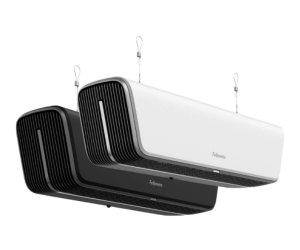

Clean air from above - Array Ceiling

Clean air from above - Array Ceiling at Aartech Canada

  • Energy efficient design includes a unique mixed flow fan, designed to maximize airflow while still being quiet
  • Implements EnviroSmart+ Technology includes a full suite of comfort and control sensors that continuously monitor contaminants, room occupancy and noise levels and will proactively respond to any changes.
    • Fellowes indoor air quality (IAQ) sensors include particulates, occupancy, temperature, humidity, carbon dioxide, pressure, TVOCs
  • Uses 3-in-1  H13 True HEPA hospital-grade filter that is 99.95% effective in capturing viruses, allergens, and germs. These filters are designed to last one full year.
  • Suspends from ceilings as high as 20 feet
  • With access to the Array Viewpoint cloud-based dashboard, users can have a comprehensive look at their air quality. Included with no charge.
  • Area Coverage:
    • 10-foot ceilings: 3 ACH per 1430 square feet, or 5 ACH per 858 square feet
    • 12-foot ceilings: 3 ACH per 1191 square feet, or 5 ACH per 715 square feet

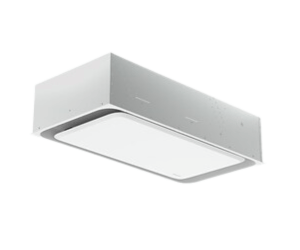

Light-powered Disinfection - Array Recess UVC

Light-powered Disinfection - Array Recess UVC at Aartech Canada

  • The clean, subtle design offers integrated and seamless suspended installation in a standard grid ceiling and is designed for occupied spaces. The unit has a self-contained UV-C champer hidden in the ceiling plenum
  • Ultra-high reflectivity chamber uses a shielded all-metal chamber designed to last the lifetime of the unit
  • Delivers up to 98.1% single pass kill rate and is designed to provide dedicated and continuous 24x7 ultraviolet protection against airborne bacteria, viruses, and mould while remaining hidden overhead
  • Easy to maintain and operate
  • AR1 unit includes a pre-filter that prevents dust and hair from entering the UV chamber, ensuring it operates as efficiently as possible
  • 9000-hour bulb only needs to be changed once per year
  • Bottom panel is designed for easy access to the bulb and filter for simplified replacements
  • With access to the Array Viewpoint cloud-based dashboard, users can have a comprehensive look at their air quality. This service is included at no charge.
  • Area coverage at 8-foot ceilings:
    • 3 ACH per 300 square feet, or 5 AHC per 180 square feet



High performance, low profile - Array Recess

High performance, low profile - Array Recess available at Aartech Canada

  • Energy efficient design includes a unique mixed flow fan that maximizes airflow and keeps things quiet
  • Uses 3-in-1 H13 True HEPA hospital-grade filter that is 99.95% effective in capturing viruses, allergens, and germs. These filters are designed to last one full year.
  • AR2 model includes dual filters
  • Implements EnviroSmart+ Technology includes a full suite of comfort and control sensors that continuously monitor contaminants, room occupancy and noise levels and will proactively respond to any changes.
    • Fellowes indoor air quality (IAQ) sensors include particulates, occupancy, temperature, humidity, carbon dioxide, pressure, TVOCs
  • With access to the Array Viewpoint cloud-based dashboard, users can have a comprehensive look at their air quality. This service is included at no charge.
  • Area Coverage with 8-foot ceilings:
    • AR1: 3 ACH per 750 square feet, 5 ACH per 450 square feet
    • AR2: 3 ACH per 1500 square feet, 5 ACH per 900 square feet

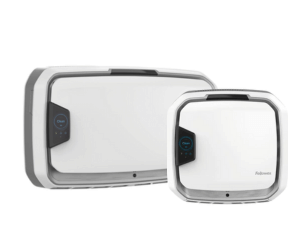

Wall-to-Wall Protection - Array Wall

Wall-to-Wall Protection - Array Wall at Aartech Canada

  • Clean, subtle design includes an integrated Lookout display providing air quality status updates
  • Fellowes 3-stage filtration includes a pre-filter, carbon and H13 true HEPA to effectively remove 99.95% of particles, including allergens such as pollen, dust, pet dander, and smoke
    • AS2 and AW2 models include dual hybrid filters
  • Implements EnviroSmart+ Technology includes a full suite of comfort and control sensors that continuously monitor contaminants, room occupancy and noise levels and will proactively respond to any changes.
    • Fellowes indoor air quality (IAQ) sensors include particulates, occupancy, temperature, humidity, carbon dioxide, pressure, TVOCs
  • With access to the Array Viewpoint cloud-based dashboard, users can have a comprehensive look at their air quality. This service is included at no charge.
  • Area coverage for 8-foot ceilings:
    • Wall AW1/Stand AS1: 3 ACH per 600 square feet, 5 ACH per 360 square feet
    • Wall AW2/Stand AS2: 3CH per 1000 square feet, 5 ACH per square feet

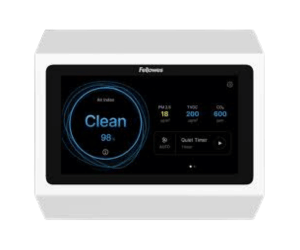

The Invisible, Now Visible - Array Lookout

The Invisible, Now Visible - Array Lookout at Aartech Canada

  • Control Array units assigned to a designated area
  • Includes a quiet button that can put all units in the room into quiet mode
  • Sleek design that can integrate into Array units with both wall mount and desktop options
  • Connects with building-wide, secure LTE to the Viewpoint cloud-based dashboard at no charge. Viewpoint provides a comprehensive look into air quality

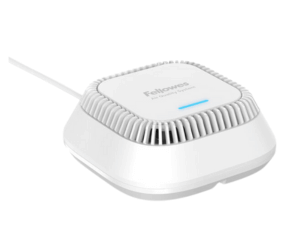

Monitor Any Apace - Array Signal

Monitor Any Apace - Array Signal at Aartech Canada

  • Sleek design fits into a variety of spaces - Both wall mount and desktop mounts are available
  • provides additional IAQ monitoring as part of the Array network, or operates solo as an independent monitor
  • IAQ sensors include particulates, temperature, humidity, carbon dioxide, pressure and TVOCs
  • The signal connects through a building-wide secure LTE to the Array viewpoint cloud-based dashboard, which is available at no charge. This gives users a comprehensive look into their air quality



Data-Informed Decisions - Array Viewpoint

  • Designed with facilities and operations managers in mind - provides comprehensive data on air quality for all connected spaces
  • Tracks trends, monitors energy usage, and can help evolve air quality strategy all from one place
  • Sensor sharing between units in one area
  • Remote Array unit controls
  • Current Reset Air Index and building, area, or device level
  • Device status and filter change notifications
  • Multi-level viewpoint account management

Viewpoint features with Viewpoint Plus paid subscription service:

  • Timers and scheduling options for any unit in the system
  • Enhanced sensor sharing and unit controls
  • Current and historical data to analyze trends and identify concerns
  • Data exporting
  • Unit maintenance notifications and troubleshooting
  • real-time filter life measure and replace history
  • Community Dashboard
  • BMS integration coming soon
